Protected in bubble wrap , packaged in carton ,MOQ: 10pcs/carton standard package: 25cm*20cm*18cm
BLE bluetooth module for ios and android with UUID programmable for sports
. Super compact package size and abundant AT commands. High-speed data transmission,varying from 2 to 10k/s.
Wireless UART Cable Replacement RF-BM-S01 Bluetooth Smart Module Hardware Manual & AT Commands Reference Manual Ver. 2.21u

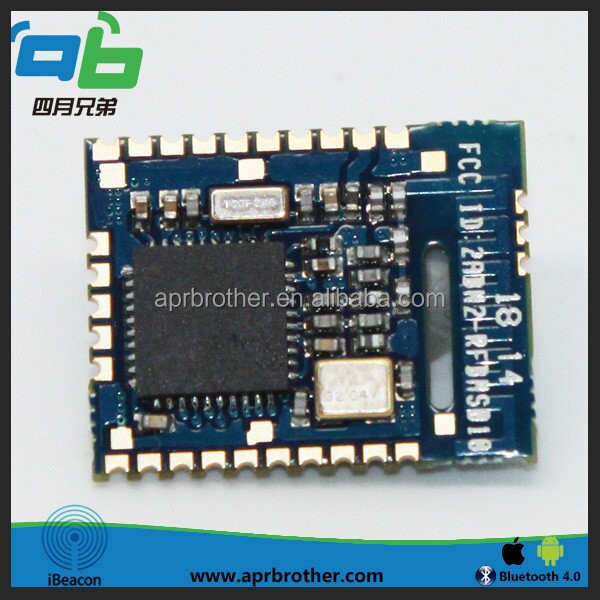

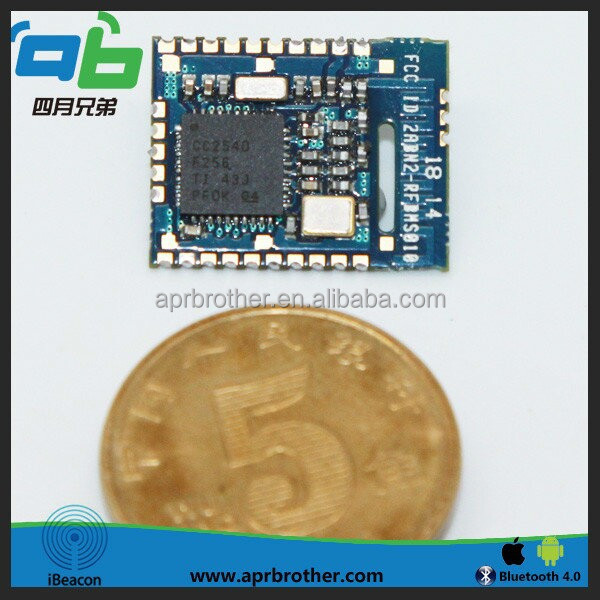

RF-BM-S01 BLE module applies CC2540 from TI as core processor. The module runs at 2.4GHz ISM band, with GFSK (Gaussian Frequency Shift Keying) modulation scheme. It has 40 channels (channel space at 2MHz), among which there are 3 fixed radio channels and 37 data channels of adaptive automatic frequency hopping. Physical layers can be combined with classic Bluetooth RF to form a dual mode device. And 2 MHz’s channel space can prevent interference from adjacent channels better. Besides, it has a wide output power adjustment (-23 dBm ~ 4dBm) and a high gain receiving sensitivity of -93 dBm.
The module is designed to quickly connect electronic products with smart mobile devices, and can be widely used in various electronic devices, such as instruments, logistics tracking, healthcare, smart home, sports metering, automotive electronics, toys, and etc. With Android 4.3 smart devices integrated
with BLE technology, it will be a trend that BLE will be the standard configuration of smart phones. Andthe
market demand on smart phone peripherals will increase geometrically. With this module, users can
integrate their existing solutions or products in the shortest development cycle, to occupy the market in
the fastest speed, and to empower their company’s growth with the strength of new technology.
Features: 1. Easy to use, no need of any experience of Bluetooth protocol stack application 2. UART design for user interface, full-duplex bi-directional communication, and supporting the minimum baud rate of 4800 bps; 3. Supporting bridge mode (USART transparent transmission), and direct-drive mode (no additional MCU needed); 4. Default connection interval of 20ms, which makes quick connection; 5. Supporting software reset module by AT command, and access to the MAC address; 6. Supporting the adjustment of Bluetooth connection interval by AT command, and the control of different forwarding rates (dynamic power adjustment); 7. Supporting the adjustment of the transmission power by AT command, the change of broadcasting interval, the customization of broadcasting data, the customization of equipment UDID, the setting of data delay (preparation time of user MCU USART receiving), the change of the USART baud rate, and the change of the module names (all settings can be saved after power-off); 8. The length of the UART packets can be any below or equal to the arbitrary length of 200 byte (large packet automatic distribution); 9. High-speed transparent transmission forward rate maximum up to 4 K/S and the stable rate to be at 2.5 K to 2.5 K (IO5, IO6); 10. Supporting the change of module name by APP in mobile devices, the change of UART baud rate and product UDID, the customization of broadcasting contents and cycle (all settings can be saved after power-off); 11. Supporting the remote reset of module by APP in mobile devices, and the setting of transmission power; 12. Supporting the adjustment of Bluetooth connection interval by APP in mobile devices but the setting cannot be saved after power-off (dynamic power adjustment);
Packaging & Shipping
10pcs/ Carton Package Measurements: 25X20X18 cm Gross Weight: 0.5kg
we will choose the prompt shipping way based on the cost & the delivery time.
we provide samples for testing, we do custom beacon & housing.
You could configure the iBeacon by our APP:Aprilbeacon(for IOS&Android4.3)
SDK of IOS and Andriod provided.
we provide any consultation or advice needed.
The iBeacon(s) will be dispatched Monday-Friday, same day as the order is made if purchased before 4pm,tracking number provided.
Once the iBeacon(s) has been purchased documentationwill be provided .
1 Q: What is the difference between using Apple SDK and April Brother’s SDK ? Is there any additional functionality on your SDK?
A:April Brother's SDK provide some function for configure the April Beacon.
proximityUUID major minor
Otherwise it's same with Apple SDK.
2 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.
3 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.
4 Q: Where can I download or air upgrade firmware or device?
A: we will provide you the link for it .
5.Q:Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
6.Q: Do you have any other products that can be used in conjuction with the iBeacon technology?
A: We are developing an sensor with temperature, 3-Axis acceleromete, Lighting. It support iBeacon technology too.
7 Q: Are the products compatible with Andriod apps too?
A: It compatible withAndroid 4.3 or above. The phone must support Bluetooth 4.0 Smart Ready.
Beijing Aprilbrother Technology Co., Ltd. specializes in integrated circuit design, RF chip of internet of things and other development and selling for application system or products. With a joined force from our competent R&D Dept., hard-working workers and sales team, we have formed a professional team to provide you with a series of Bluetooth4.0 products.
