Beacon 302 USB Dongle with iBeacon tech

FOB Reference Price:Get Latest Price
US $10-13 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Aprilbeacon
Model Number:
Aprilbeacon 302
Communication range:
15m
Chip:
TI CC2540
iBeacon size:
22 * 14 * 4mm
Default frequency:
600ms
Setting frequency:
100ms or more
System:
IOS 7.0, Android 4.3 or above
Supply Ability
Supply Ability:
200000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1set=1iBeacon+1case
Protected in bubble wrap , packaged in carton ,50sets/carton
Standard package: 25cm*20cm*18cm
Port
beijing
Lead Time :
1~2 work days

April Beacon 302 tiny USB device that runs on Bluetooth 4.0 Low Energy

What is it?

An April Beacon 302 is a tiny USB device that runs on Bluetooth 4.0 Low Energy; It is an iBeacon licensed technology that functions as a proximity Bluetooth Beacon. With AprilBeacon 302, proximity marketing has never been easier. By knowing where your customers are you can instantly deliver to them the most relevant and timely interaction.

The April Beacon 302 also provide USB-UART transparent transfer function. It can be custom configured using the AT command over the USB connector interface. The size is 21.6mm x 14.3mm x 5.4mm.

Specification

Default Settings

  • iBeacon advertising on
  • Default proximityUUID: E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
  • Default major and minor: 0
  • Default measured power: -72
  • Default advertising interval: 100ms
  • Default param for TTL: 9600, N, 8, 1
  • Default role - peripheral

Service And Characteristic

  • Service UUID FFF0 -> Characteristic FFF1
  • Subscribe FFF1 to get RX data.
  • Write to FFF1 to send TX data.

Usage

  • For change settings, plugin computer and Install the driver.
  • Enjoy it.

Downloads

Technical Documents

FAQ



 1 Q: What is the difference between using Apple SDK and April Brother’s SDK ? Is there any additional functionality on your SDK?



A:April Brother's SDK provide some function for configure the April Beacon.



For example:



proximityUUID
major
minor



etc...



Otherwise it's same with Apple SDK.



2 Q: Can I get SDK for Android and iOS?

A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.



3 Q: Can I have our own logo and in what kind of way?

A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.



4.Q:Would you also be able to make custom housing for the circuits?

A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.



5.Q: Do you have any other products that can be used in conjuction with the iBeacon technology?

A: We are developing an sensor with temperature, 3-Axis acceleromete, Lighting. It support iBeacon technology too.



6 Q: Are the products compatible with Andriod apps too?

A: It compatible with Android 4.3 or above. The phone must support Bluetooth 4.0 Smart Ready.



7.Q: do you have any R&D team to support ?

A: yes, we have our R&D team to provide you technology support for your late configuring .

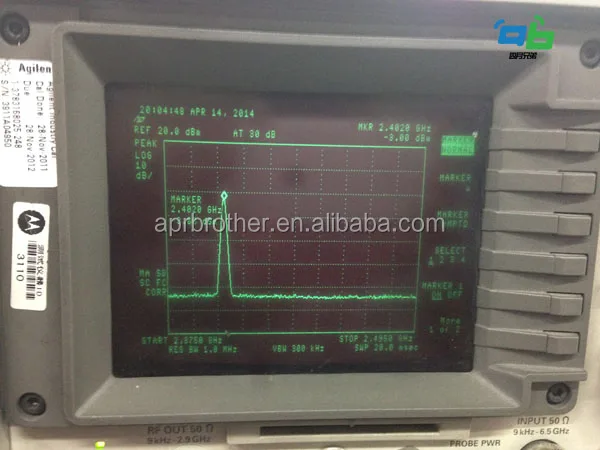

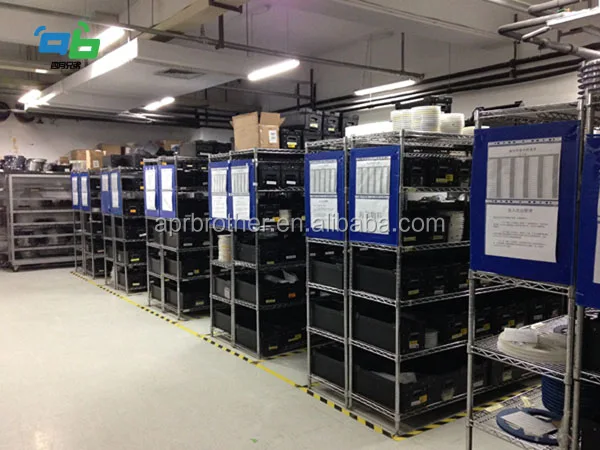

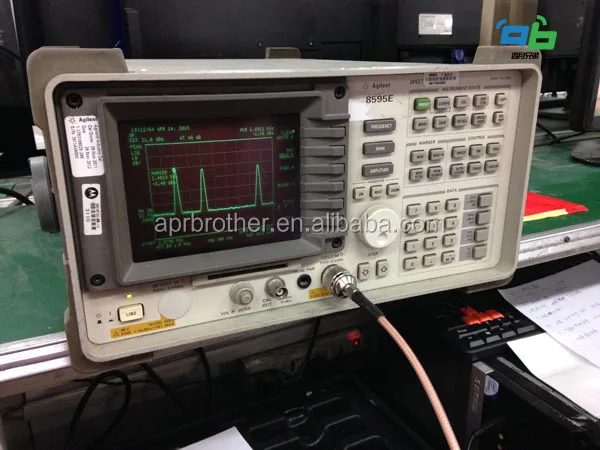

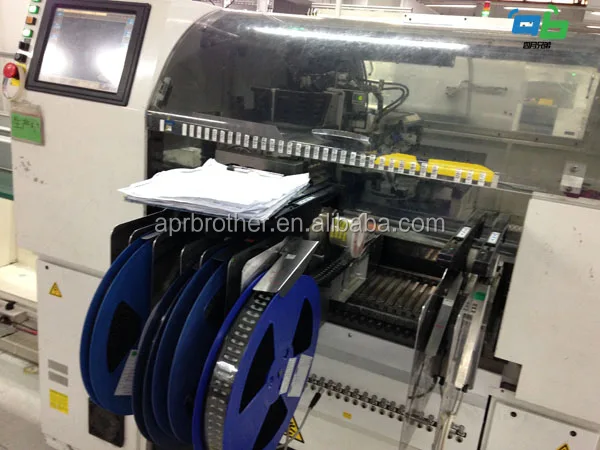

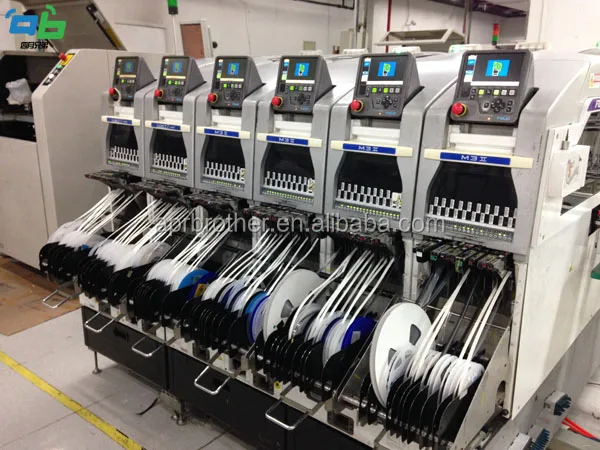

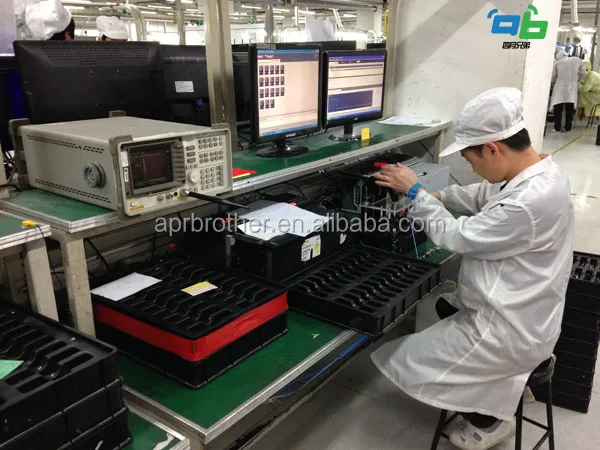

workshop pics:



Our Service:

 1,Customize the case with your logo & customize the firmware of iBeacon

 2,Pre-configure the value of parameter before the shipment.

 3,Package case can be customized if required.

 4,APP & SDK for IOS&Android4.3 provided.

 5,We have professional team provide any consultation or advice needed.

 6,SDK is available to help customers build their own APP or use our APP.



Waranty:

1.  All products and accessories have been tested by 3 times before ship out.

2.  All products have 1 year warranty, If there is no man-made problem, we will do our technology service freely.

3.  We own the best after-sale service, if any problems happen, Our team will do our best to solve for customer.



April Beacon + ( API + SDK  ) Platform = Complete Solution

Just Add Your App. Integration is easy with our API.
Use our Admin App and Web Panel to manage everything.







Personalize your beacons with custom logos & colors.








Build your platform on our platform.
We make it easy. Our API lets you do anything you want.
  • Make your beacon solution work the way you want it to.
  • We provide you extensive and dedicated support.
  • Our innovations & technology are ahead of the pack.



Pls be kindly noted that all our products are not send battery due to chinese custom prohibit for shipping.



Order from us and join our R&D bbs now !

Contact: Julia Zheng

skype:aprilbeacon
