BLE4.0 wifi and bluetooth IoT Gateway with tracking iBeacon Eddystone BLE beacon location

FOB Reference Price:Get Latest Price
US $30-39 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
200000 Set/Sets per Month
Port:
Beijing
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Aprilbrother
Model Number:
Gateway 4
Color:
Black
Size:
72mmx74mmx20mm
Chipset:
NRF52832
Input:
DC 5V/1000mA, micro-USB or POE 48V
Supports:
WebSocket/HTTP/MQTT protocol
BLE Working Range:
30M or more
Frequency band:
2.4GHz
Operating temperature:
-20'C to 60'C
Supports devices:
iBeacon/Eddystone beacon
Advertising data:
200 per second
Packaging & Delivery
Packaging Details
Protected in bubble wrap ,
Packaged in carton ,50sets/carton
Standard package: 25cm*20cm*18cm
Delivery Time
1~2days after payment received
Product Description

Thank you for choosing us

Our site is :www.aprbrother.com
We are the earliest manufacturer of beacons with iBeacon technology in China. We provide integrated deployment guide for iBeacon users.
We provide customized service such as beacon name, logo printing , ibeacon App development and etc.

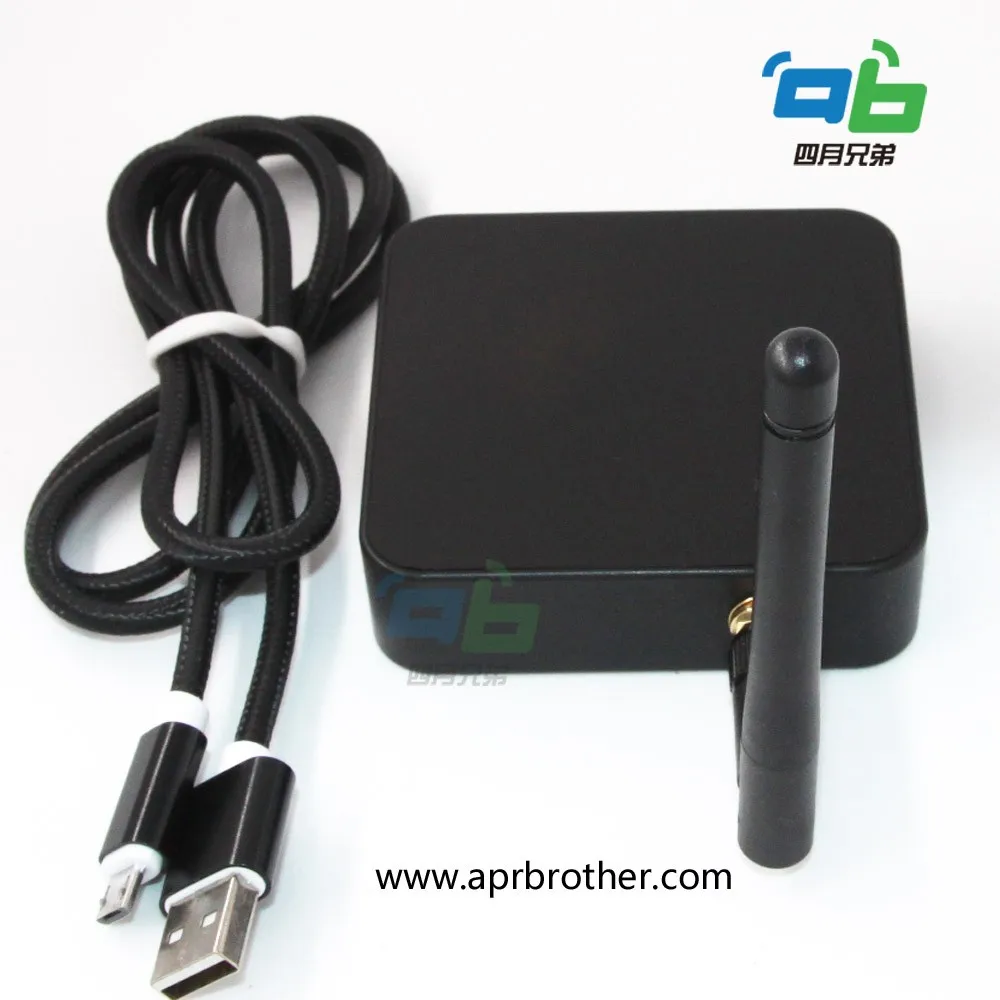

AB BLE Gateway V4 is a BLE to gateway and bridge. The gateway reads iBeacon and Eddystone like beacon or customized Tag format and sends to local TCP server or internet HTTP/MQTT server.

User can configure the transmit period and server information through a simple HTTP API.

Product Show
Product Features

1) Size: 72mmx74mmx20mm

2) Input: DC 5V/1000mA, micro-USB or Standard POE 48V
3) Operating temperature: -20'C to 60'C
4) Reads multiple BLE devices in the same time
5) Support WebSocket/HTTP/MQTT protocol

BLE

1) Bluetooth Smart( BLE) is based on NRF52832
2) Bluetooth with on board PCB antenna

3) Bi-direction: Reads message advertised from BLE
4) devices and/or advertise command to BLE
5) devices(not standard, by request)
6) 30M range in open space


Wi-Fi

1) WiFi is based on ESP32
2) Support 802.11 b/g/n/e/i(802.11n,Speed 150 Mbps)
3) 2.4GHz frequency band
4) Transmit power:
               +20dBm @802.11b
               +14dBm @802.11n
5) WiFi data rate up to 150Mbps
6) WiFi with on board PCB antenna
7) HTTP api for configuration
8) Connect to Cloud server or local server
9) 100M range in open space

Ethernet

1)  full-duplex 10-BASE-T/100BASE-TX transceiver and supports 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operation.

2) 15W Power Over Ethernet Meets IEEE 802. 3 af Specifications

Applications

1)iBeacon/Eddystone/tag receiver for location tracking
2)BLE sensor reader for sensor network
3)Building automation
4)Health and wellness monitoring
5)Cycling, biking

6)Security
7)Location tracking
8)Access management
9)Advertisement
10)Industrial automation
11)Indoor Location
12)Meeting sign in
13)Check in
14)Parking & Checking in
15)Home automation

Our Advantages

We are the largest iBeacon provider here in China. We have several customers which are the biggest Indoor navigation service providers. They have bought bunch of our beacons in their projects. During the process of providing deployment services, we have developed many features in our APP, and gained abundant practical experiences in batching deployment.
1)Our App AprilBeacon(both Android and iOS version) have batch function, can update UUID etc automatically.
2)We have Mac address on both case and PCB. So it is easy to recognize with specific one.
3)During the maintaining process, you will face many problems such as iBeacon lost, battery low power etc. We have platform Skymap(http://skymap.aprbrother.com). It is a online service for your operational groups.
